• Shuvalaxmi Pati

A Simple Interpretation On Gradient Descent Boosting Of Machine Learning

Gradient Descent boosting classifiers are a gathering of Machine Learning algorithms that join numerous weak learning models together to make a Perfect Predictive Model. Decision trees are normally utilized while doing Gradient Boosting. Gradient Boosting models are turning out to be mainstream due to their adequacy at characterizing complex datasets. The python machine learning library, Scikit-Learn supports different implementation of gradient boosting classifiers , including XGBoost.


[Gradient Descent Boosting Classifier]


Whereas random forests build associate degree ensemble of deep independent trees, GBMs build associate degree ensemble of shallow and weak sequent trees with every tree learning and up on the previous. once combined, these several weak sequent trees manufacture a robust “committee” that square measure usually laborious to beat with different algorithms. This tutorial can cowl the basics of GBMs for regression issues.

In order to implement a gradient boosting classifier, we need to do various steps.


  1. Fit the model

  2. Tune the model's parameters and Hyperparameters

  3. Make predictions

  4. Interpret the results

The Utility


Several supervised machine learning models are based on one prognostic model (i.e linear regression, penalized models, Naive Bayes, support vector machines). Alternatively, other approaches such as bagging and random forests are built on the idea of building an ensemble of models where each individual model predicts the outcome and then the ensemble simply averages the predicted values. The boosting strategies is predicated on a special, constructive strategy of ensemble formation.


The main plan of boosting is to feature new models to the ensemble consecutive. At every specific iteration, a new weak, base-learner model is trained with regard to the error of the total ensemble learnt to date.

Sequential training with respect to errors


Boosted trees area unit grown sequentially; every tree is grown outrage info from antecedently grown trees. the fundamental formula for boosted regression trees is generalized to the subsequent wherever x represents our options and y represents our response: Fit a decision tree to the data: F1(x)=yF1(x)=y,


We then fit the next decision tree to the residuals of the previous: h1(x)=y−F1(x)h1(x)=y−F1(x),


Add this new tree to our algorithm: F2(x)=F1(x)+h1(x)F2(x)=F1(x)+h1(x),

Fit the next decision tree to the residuals of F2F2: h2(x)=y−F2(x)h2(x)=y−F2(x),

Add this new tree to our algorithm: F3(x)=F2(x)+h1(x)F3(x)=F2(x)+h1(x),

Continue this process until some mechanism (i.e. cross validation) tells us to stop.


The basic rule for boosted regression trees are often generalized to the subsequent wherever the

ultimate model is just a stagewise additive model of b individual regression trees.

f(x)=B∑b=1fb(x)

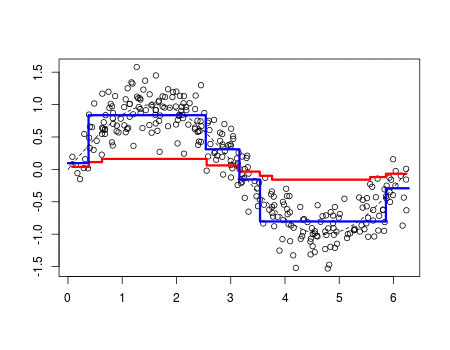

[Boosted Regression Tree Prediction]




Implementation Of Gradient Boosting Classifier


We'll currently reconsider the implementation of a straightforward gradient boosting classifier associated an XGBoost classifier. We'll begin with the  boosting classifier.


Creating classification dataset with make_classification


Second, we will construct a synthetic binary-classification problem with a thousand input examples and twenty options victimization create classification().


Next, take this dataset, we tend to area unit reaching to build the boosted gradient algorithmic program.


## Dataset of test classification

from sklearn.datasets import make_classification

## defining dataset

X, y = make_classification(n_samples=1000, n_features=20,

n_informative=15, n_redundant=5, random_state=7)

## summarizing the dataset

print(X.shape, y.shape)

## Output

## (1000, 20) (1000,)


Building Gradient Boosting Classifier


With recurrent k-fold validation, we are going to check the model with 3 repetitions and ten folds.

We report on all repeats and folds the mean and variance from the accuracy of the formula.

Even we  are having different  measures for conniving performance of the models, during this case we've got used  the accuracy.


from numpy import mean

from numpy import std

from sklearn.datasets import make_classification

from sklearn.model_selection import cross_val_score

from sklearn.model_selection import RepeatedStratifiedKFold

from sklearn.ensemble import GradientBoostingClassifier

## defining dataset

X, y = make_classification(n_samples=1000, n_features=20, n_informative=15, n_redundant=5, random_state=7)

## defining the model

model = GradientBoostingClassifier()

## defining the evaluation method

cv = RepeatedStratifiedKFold(n_splits=10, n_repeats=3, random_state=1)

## Assess the dataset model

n_scores = cross_val_score(model, X, y, scoring='accuracy', cv=cv, n_jobs=-1)

## production of the study

print('Mean Accuracy: %.3f (%.3f)' % (mean(n_scores), std(n_scores))


Gradient Boosting Hyperparameters


There square measure maybe four key hyperparameters that have the most important impact on model performance, they're the quantity of models within the ensemble, the training rate, the variance of the model controlled via the scale of the information sample wont to train every model or options employed in tree splits, and at last the depth of the decision tree.


The following graph shows however the mean square error changes as we tend to add a lot of weak models, illustrated with a number of completely different learning rates.



GBM isn't simply a specific rule however a typical technique for building model sets. Gradient boosting models square measure economical for each classification and regression algorithms, very advanced knowledge sets. Gradient boosting models will do alright, however it's conjointly at risk of overfitting, that was compared with a range of the on top of strategies. Using the Scikit-Learn gradient boosters makes our job really easy.



References


1. https://towardsdatascience.com/understanding-gradient-boosting-machines-9be756fe76ab

2. https://bradleyboehmke.github.io/HOML/gbm.html

3. https://machinelearningmastery.com/gentle-introduction-gradient-boosting-algorithm-machine-learning/

4. https://data-flair.training/blogs/gradient-boosting-algorithm/
